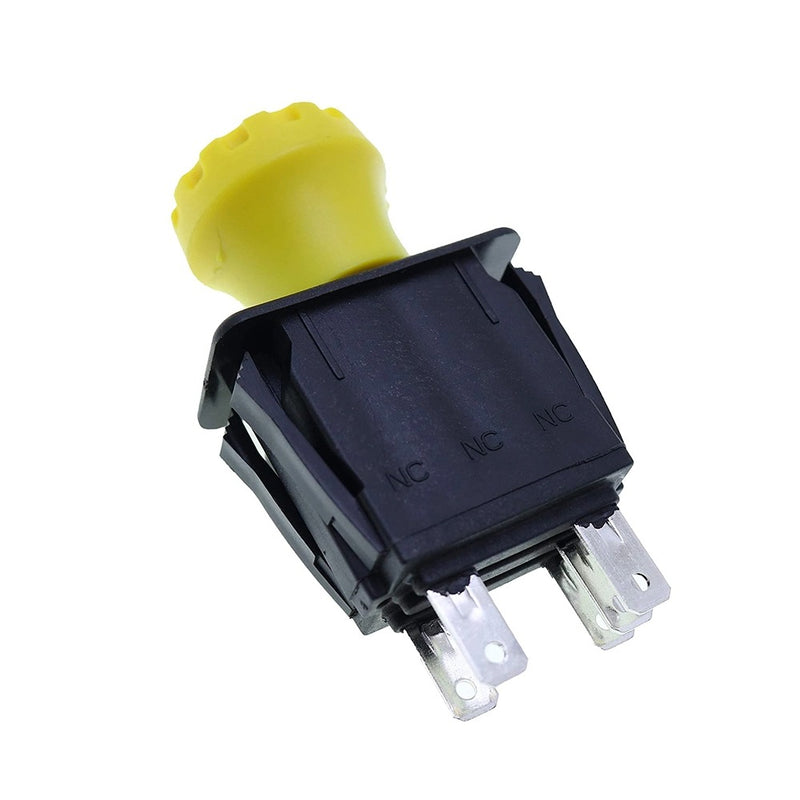

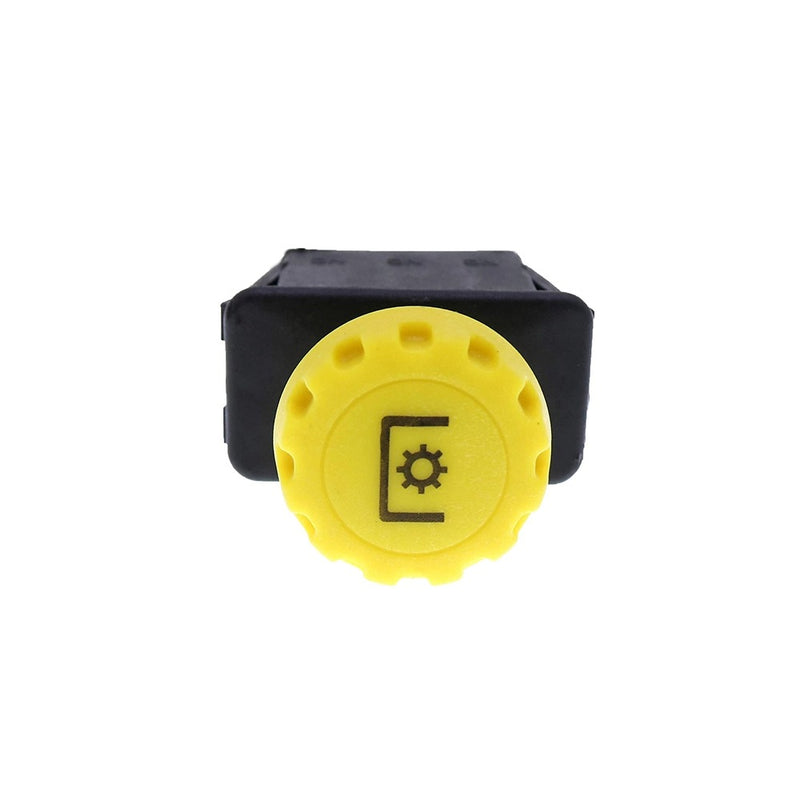

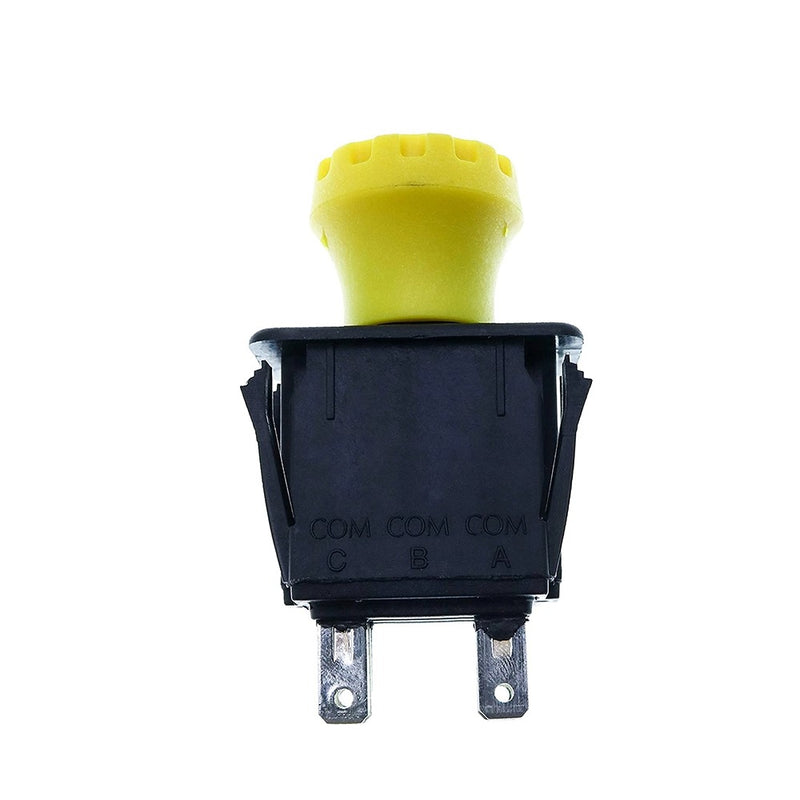

Blade Clutch PTO Switch AM118802 K1211-62230 K1211-62231 for JD Great Dane Tractors LX173 LX172 LX176 LX178 LX186 LX188
Description
Blade Clutch PTO Switch AM118802 K1211-62230 K1211-62231 for JD Great Dane Tractors LX173 LX172 LX176 LX178 LX186 LX188
Part Number:
JD AM118802
Kubota K1211-62230,K1211-62231
Specification:
Inductive:40,000
Cycles Resistive:1000,000
Operating Voltgae Range:9-16VDC
Operating Current:5 Apms
Contact resistance rated loade 50(mΩ)
Application:JD Tractors LX173,LX172,LX176,LX178,LX186,LX188
Feature:
2 Position Non-momentary PTO
Mounting Type-Snap in
Multiple standard knob colors/graphics
5 Terminals-Anti-Corrosion Material made by nicked and tin plated brass
